• Kind of component: wired moisture sensor
  • Item code E.3XX
  • Data transmission: via low voltage cable
  • Power supply: via low voltage cable
  • Transmission distance: 100 meters
  • Data transmission: once an hour
  • Humidity measurement: 10 - 32%
  • Operating temperature: 0 - 60 ° C
  • Connectable sensors: up to 16 (32 moisture probes)

Description

MySenseBus is the moisture sensor recommended for new buildings, where the sensors are connected in series to the MyControl CPU control unit via a low voltage cable. The connection in series between sensors and control unit via the cable guarantees the safety of data transmission, even on long stretches, up to 100 meters in length of the bus cable.

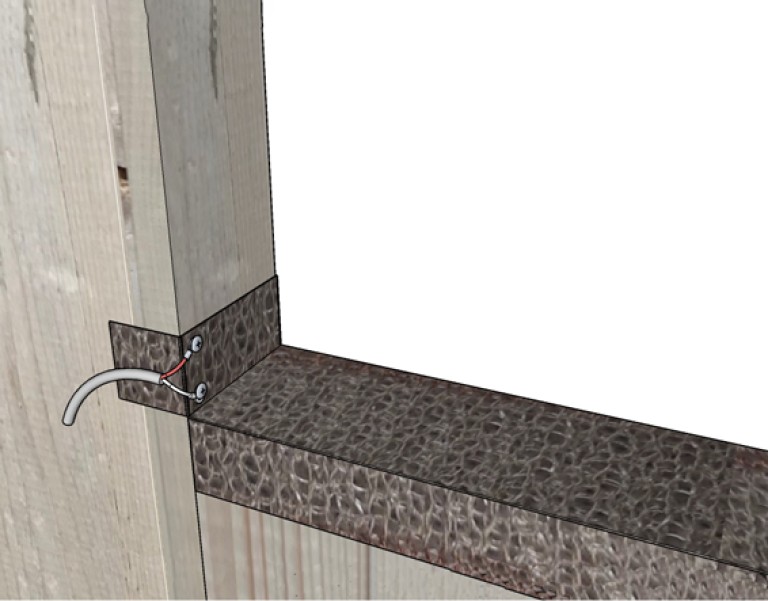

The sensor is equipped with two adjustable moisture probes which allow to reach the sensitive points of the structure such as: ground interface, windows, terraces and flat roofs, bathrooms and shower trays



Package contents

  • n° 1 Bus sensor with case box for light wall
  • n° 1 Temperature probe with 1 m cable length
  • n° 2 Gel Box
  • n° 4 non-insulated stainless steel electrodes 100 mm long*
  • n° 2 Moisture probes length. 1, 2 or 3 meter cable *

* Other measurements of electrodes and probes cables on request

Item codes

  • E.311 MySenseBus 1/1 probe length 1 mt
  • E.312 MySenseBus 1/2 probe length 1 e 2 mt
  • E.313 MySenseBus 1/3 probe length 1 e 3 mt
  • E.322 MySenseBus 2/2 probe length 2 mt
  • E.323 MySenseBus 2/3 probe length 2 e 3 mt
  • E.333 MySenseBus 3/3 probe length 3 mt

FAQ

MySenseBus is the humidity sensor recommended for new buildings, where the sensors are connected in series to the MyControl CPU control unit via a low voltage cable.

The connection in series between sensors and control unit via the cable guarantees the safety of data transmission, even on long distances, up to 100 meters in length of the bus cable.

The sensors are connected in series to each other and to the control unit by means of a bus cable, supplied with the system. Connection is extremely easy, thanks to spring-loaded terminals that replace approximate contacts or fixings.

The humidity and temperature data are sent once an hour to the control unit, via a low voltage cable. The maximum recommended cable length is 100 meters.
